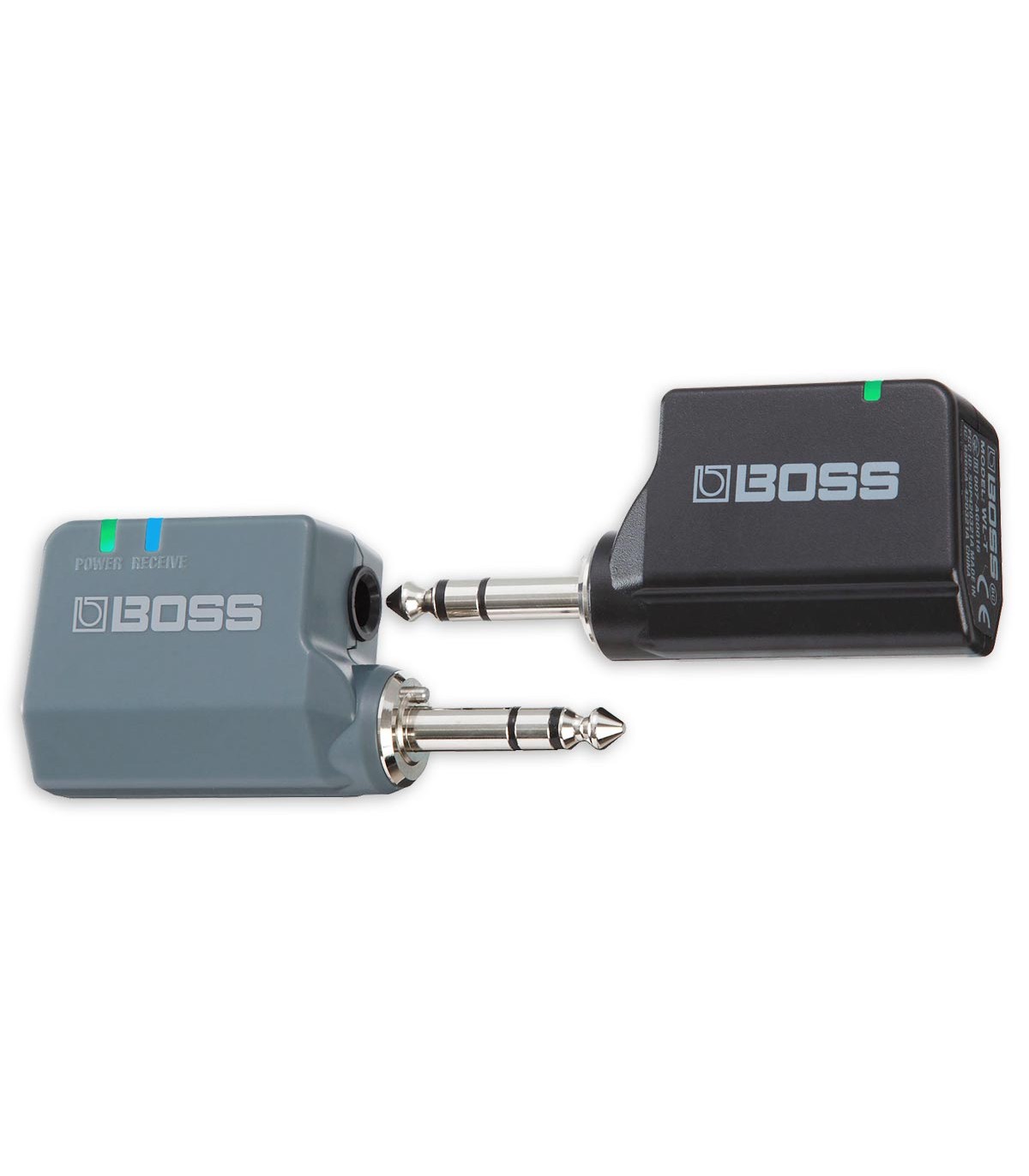

Boss WL-20L Wireless Guitar System

Specifications:

Receiver:

• Wireless Format: BOSS Proprietary Digital Audio Format
• Wireless Carrier Frequency: 2.4 GHz
• Compatible Channels: 14 (may vary due to local conditions)
• Transmission Range: 50 feet / 15 metres line-of-sight (may vary)
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz — 20 kHz
• Nominal Output Level: -10 dBu
• Output Impedance: 1 kΩ
• Recommended Load Impedance: 10 kΩ or greater
• Indicators: POWER, RECEIVE
• Connectors: Output: 1/4" TRS phone jack | TRANSMITTER jack: 1/4" TRS phone type | Charging: USB Micro-B
• Power Supply: Rechargeable Lithium-Ion Battery / DC IN 5V port
• Current Draw (operation): 60 mA | While charging: 500 mA
• Battery Charging Time: ~3 hours (receiver only) / ~4 hours (simultaneous with transmitter)
• Battery Life: Approximately 7 hours
• Dimensions: 87 (W) × 25 (D) × 38 (H) mm
• Weight: 60 g / 3 oz

Transmitter (WL-T):

• Nominal Input Level: -10 dBu (1 MΩ)
• Indicator: BATTERY
• Connectors: Input: 1/4" TRS phone jack | Charging: USB Micro-B
• Power Supply: Rechargeable Lithium-Ion Battery / DC IN 5V port
• Current Draw: 350 mA
• Battery Charging Time: Approximately 3 hours
• Battery Life: Approximately 12 hours
• Dimensions: 87 (W) × 22 (D) × 36 (H) mm
• Weight: 43 g / 2 oz

Included Accessories:

• Owner's Manual
• Leaflet "Using the Unit Safely"
• Micro USB cable for charging
