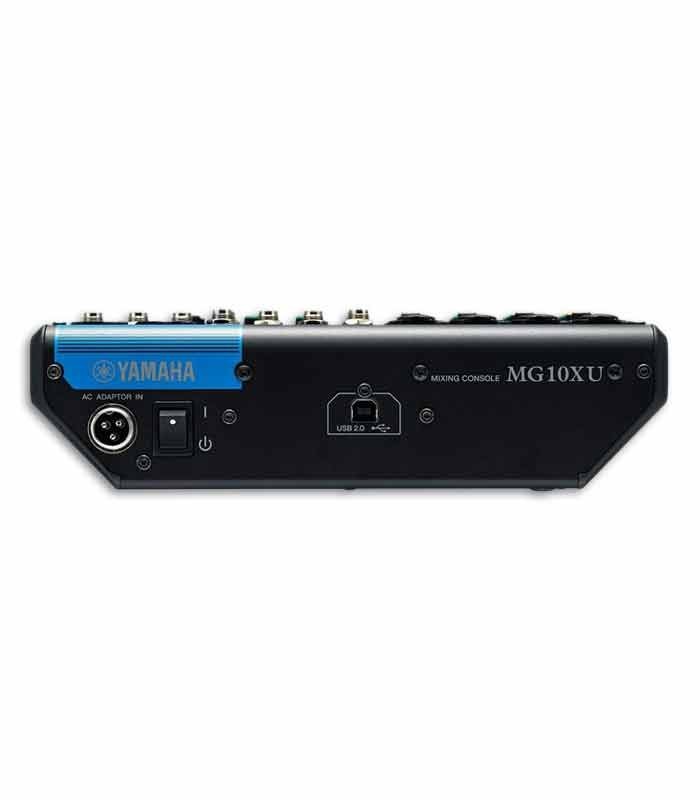

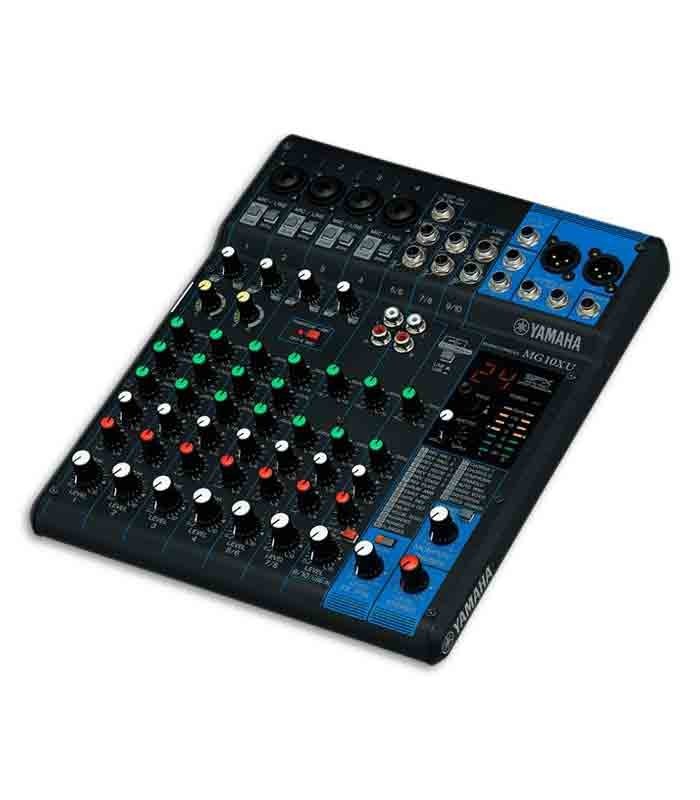

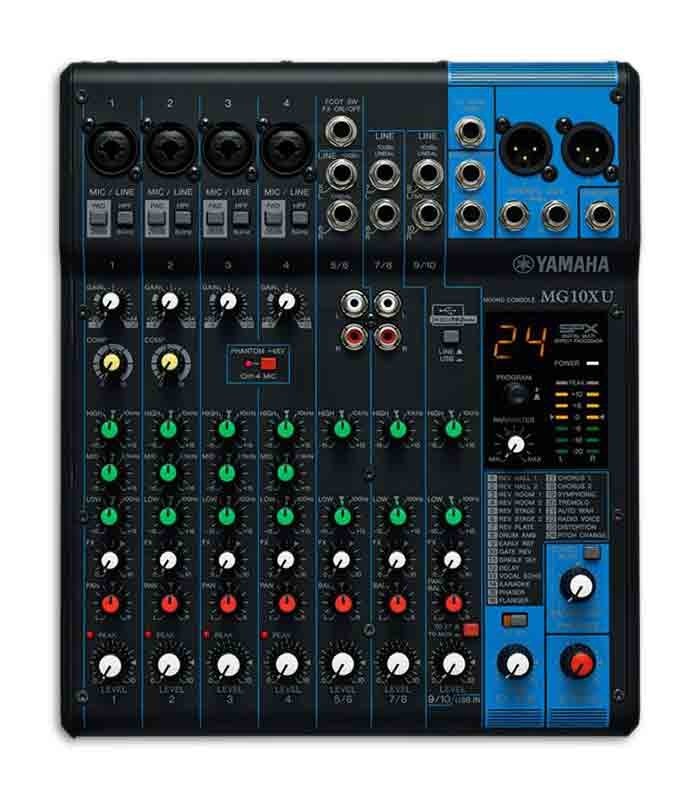

Yamaha Mixing Console MG10UX 10 Channels

The MG10XU model is an intermediate model with 10 channels of the Yamaha MG mixer series, which has tables between 6 and 20 channels. They are suitable for a wide range of users and applications, from installed sound settings, recording studios or live music. The solid construction and flexible design allow you to shape your sound with confidence.

More details

Ref: 03885
New product

On Request

Available Now
More info

The Yamaha MG10XU is a mixer with 10 Channels and USB output. Includes access to the Cubase AI DAW program for download and works with iPad.

Yamaha continues to innovate and develop sturdy and versatile mixing tables. The MG10XU is the intermediate model of the MG series, ideal for taking to the road, or to start a home audio studio.

The MG10XU preamplifiers are studio-quality, high-quality and powerful, with a huge range of frequencies: the bass has a huge presence and the high definition treble, without distortion, so you do not have to push the buttons too much to find the your sound.

The power and quality of the MG range comes from the MG01 operating amplifier, the integrated circuit that delivers more power at low impedance and is redesigned specifically for this series so that signal quality always comes first.

The first two tracks come with compression control, which can adjust directly and have a consistent sound in volume and presence, ideal for voices, to tame the bass bass or snare peaks, to have a more defined guitar sound, without ever losing the dynamics, and adding consistency.

The MG10XU also has enormous creative potential thanks to 24 integrated digital effects, from reverbs to chorus, flanger, and others, to give a greater dimension to the sound of the band. This table is also very useful for those who record covers of voice, radio or podcasts since some of the effects serve to give the voice the weight and color of a professional locution.

All buttons are organized in a traditional and intuitive way, with digital numeric indication of which effect is in use, for clear and simple viewing. Highlights include the strategic placement of phantom power selectors and audio output per line or USB.

The USB connection allows you to connect the MG10XU to your computer or iPhone to transmit the output signal directly to your preferred audio editor with the highest possible digital quality. If you do not have an audio editor, the MG10XU gives you access to the Cubase AI package so you can immediately start recording your work.

Yamaha mixers are renowned for their sound quality and reliability as well as their rugged construction. The MG10XU is an equipment for those who do not need many channels but want to have several connection possibilities to be able to boost their sound with the highest definition and creativity.


  • 10-channel mixing console

  • Inputs: 4 Mic, 10 Line (4 mono + 3 stereo), 1 AUX
  • Bus: 1 stereo

  • 1-Knob compressors

  • "D-PRe" mic preamps with Darlington circuit

  • 24-bit / 192kHz 2in / 2out USB Audio functions

  • High-grade effects: SPX with 24 programs
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • Phantom Power: +48V
  • Outputs: XLR

  • Works with the iPad (2 or later)through the Apple iPad Camera Connection Kit/Lightning to USB Camera Adapter
  • Chassis: metal

  • Width: 244 mm (9.6")

  • Height: 71 mm (2.8")

  • Depth: 294 mm (11.6")
